CS Sealed Lead Acid Battery

Short Description:

CSPOWER CS series Sealed free maintenance lead acid batteries are designed with AGM technology,

high performance plates and electrolyte to gain extra power output for common power backup system

applications widely used in the fields of UPS, Security and Emergency lighting system.



Brand: CSPOWER / OEM Brand for customers Freely

Certificates: ISO9001/14001/18001 ; CE/IEC 60896-21/22 / IEC 61427 /UL Approved


Product Detail

Technical Data

Product Tags

> Characteristics

CS Series SEALED FREE MAINTENANCE VRLA AGM BATTERY

Voltage: 12V, 6V

Capacity: 12V4Ah~12V250Ah; 6V4Ah~6V12Ah

Designed floating service life: 8-10 years @ 25 °C/77 °F.

Brand: CSPOWER / OEM Brand for customers Freely

Certificates: ISO9001/14001/18001 ; CE/IEC 60896-21/22 / IEC 61427 /UL Approved

> Summary

CSPOWER CS series Sealed free maintenance lead acid batteries are designed with AGM technology, high performance plates and electrolyte to gain extra power output for common power backup system applications widely used in the fields of UPS, Security and Emergency lighting system.

They are sealed and free maintenance whole life, valve regulated type standby AGM battery, also named by VRLA battery, SLA battery, and SMF battery.

> Features And Advantages For Sealed Free Maintenance Lead Acid Battery

30% more cyclic life through innovation at the PAM additives

Long life expectancy of 10 years in floating condition

Thick flat plate with high Tin low Calcium alloy

Wide operating temperature range from -15°C to 45°C

3% Low self-discharge rate

Very good deep cycle performance: up to 750 cycles @50% DOD

Excellent deep discharge recovery capability

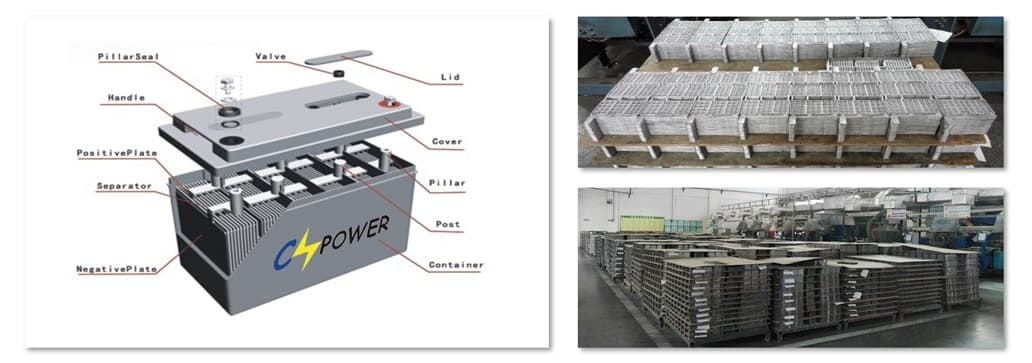

> Construction For VRLA AGM Battery

Positive plate – Thick high Sn low Ca grid with special paste

Negative plate – Balanced Pb-Ca grid for improved recombination efficiency

Separator – Advanced AGM separator for high pressure cell design

Electrolyte – Dilute high purity sulfuric acid

Battery container and cover –Fire resistance ABS, water proof

Pillar seal – Two layers epoxy resin seal

Relief valve – Complete with integrated flame arrestor

> Charging Voltage And Settings For VRLA Battery

1. Constant voltage charging is recommended

2. Recommended float charge voltage: 2.27V/cell @20~25°C

3. Float voltage temperature compensation: -3mV/°C/cel l

4. Float voltage range: 2.27 to 2.30 V/cell @ 20~25°C

5. Cyclic application charge voltage : 2.40 to 2.47 V/cell @ 20~25°C

6. Max. charge current allowable : 0.25C

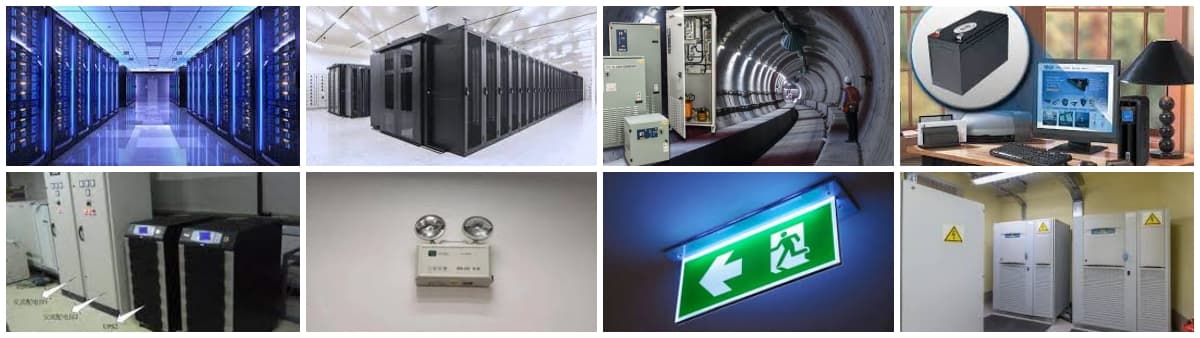

> Application For Sealed Free Maintenance Lead Acid Battery

Uninterruptible power supplies (UPS); Emergency Lighting Systems; Alarm Systems, Computers; Fire & security systems; Telecommunication systems; Inverter; Solar powered systems; Power Tools; Communication equipment; Electronic cash registers; Electronic test equipment; processor based office machines; Control equipment; Electric powered bicycle and wheelchairs; Geophysical equipment; Marine equipment; Medical equipment; Portable cine & video lights; Television& video recorders; Vending machines; Toys; Geophysical Equipment; Vending Machines ; Other standby or primary power supplies.


  • Previous:
  • Next:

  • CSP-MODEL

    Voltage
    (V)

    Capacity
    (Ah)

    Length
    (mm)

    Width
    (mm)

    Height
    (mm)

    Total Height
    (mm)

    Weight (kg)
    (±3%)

    Terminal

    Bolt

    CS6-4.0

    6

    4/20HR

    70

    47

    101

    107

    0.7

    F1/F2/CUT

    /

    CS6-4.5

    6

    4.5/20HR

    70

    47

    101

    107

    0.75

    F1/F2/CUT

    /

    CS6-5

    6

    5/20HR

    70

    47

    101

    107

    0.8

    F1/F2

    /

    CS6-7.0

    6

    7/20HR

    151

    34

    95

    101

    1.15

    F1/F2

    /

    CS6-10

    6

    10/20HR

    151

    50

    94

    100

    1.6

    F1/F2

    /

    CS6-12

    6

    12/20HR

    151

    50

    94

    100

    1.75

    F1/F2

    /

    CS12-4

    12

    4/20HR

    90

    70

    101

    107

    1.35

    F1/F2

    /

    CS12-4.5

    12

    4.5/20HR

    90

    70

    101

    107

    1.48

    F1/F2

    /

    CS12-5

    12

    5/20HR

    90

    70

    101

    107

    1.58

    F1/F2

    /

    CS12-6.5

    12

    6.5/20HR

    151

    65

    94

    100

    1.9

    F1/F2

    /

    CS12-7.0

    12

    7/20HR

    151

    65

    94

    100

    2.05

    F1/F2

    /

    CS12-7.2

    12

    7.2/20HR

    151

    65

    94

    100

    2.15

    F1/F2

    /

    CS12-7.5

    12

    7.5/20HR

    151

    65

    94

    100

    2.2

    F1/F2

    /

    CS12-9

    12

    9/20HR

    151

    65

    94

    100

    2.4

    F1/F2

    /

    CS12-10

    12

    10/20HR

    152

    99

    96

    102

    3.2

    F1/F2

    /

    CS12-12

    12

    12/20HR

    152

    99

    96

    102

    3.5

    F1/F2

    /

    CS12-15

    12

    15/20HR

    152

    99

    96

    102

    3.8

    F1/F2

    /

    CS12-17/18

    12

    17/18/20HR

    181

    77

    167

    167

    5.2

    T1

    M5×16

    CS12-20

    12

    20/20HR

    181

    77

    167

    167

    6

    T2

    M6×16

    CS12-24

    12

    24/10HR

    166

    126

    174

    174

    7.7

    T2

    M6×16

    CS12-26

    12

    26/10HR

    166

    175

    126

    126

    8.3

    T2

    M6×16

    CS12-35

    12

    35/10HR

    196

    130

    155

    167

    10

    T2

    M6×16

    CS12-38/40

    12

    38/40 /10HR

    198

    166

    172

    172

    12.3

    T2

    M6×16

    CS12-45

    12

    45/10HR

    198

    166

    174

    174

    13

    T2

    M6×16

    CS12-50

    12

    50/10HR

    229

    138

    208

    212

    15.5

    T3

    M6×16

    CS12-55

    12

    55/10HR

    229

    138

    208

    212

    16.2

    T3

    M6×16

    CS12-65

    12

    65/10HR

    350

    167

    178

    178

    20.5

    T3

    M6×16

    CS12-70

    12

    70/10HR

    350

    167

    178

    178

    21.5

    T3

    M6×16

    CS12-75

    12

    75/10HR

    260

    169

    211

    215

    22

    T3

    M6×16

    CS12-80

    12

    80/10HR

    260

    169

    211

    215

    23.5

    T3

    M8×16

    CS12-85/90

    12

    85/90/10HR

    331

    174

    214

    219

    25

    T3

    M6×16

    CS12-100C

    12

    100/20HR

    307

    169

    211

    216

    27

    T3

    M6×16

    CS12-100A

    12

    100/10HR

    331

    174

    214

    219

    29

    T4

    M6×16

    CS12-120B

    12

    120/10HR

    407

    173

    210

    233

    33

    T5

    M8×16

    CS12-120A

    12

    120/10HR

    407

    173

    210

    233

    34

    T5

    M8×16

    CS12-135

    12

    135/10HR

    341

    173

    283

    288

    41

    T5

    M8×16

    CS12-150B

    12

    150/20HR

    484

    171

    241

    241

    41

    T4

    M8×16

    CS12-150A

    12

    150/10HR

    484

    171

    241

    241

    43.5

    T4

    M8×16

    CS12-160

    12

    160/10HR

    532

    206

    216

    222

    48.5

    T4

    M8×16

    CS12-180

    12

    180/10HR

    532

    206

    216

    222

    53

    T4

    M8×16

    CS12-200B

    12

    200/20HR

    522

    240

    219

    225

    56

    T5

    M8×16

    CS12-200A

    12

    200/10HR

    522

    240

    219

    225

    58.2

    T5

    M8×16

    CS12-230

    12

    230/10HR

    522

    240

    219

    225

    61

    T5

    M8×16

    CS12-250

    12

    250/10HR

    520

    268

    220

    225

    70

    T5

    M8×16
