HTL High Temp GEL Battery

Short Description:

  • • Brand: CSPOWER / OEM Brand for customers Freely
  • • ISO9001/14001/18001;
  • • CE/UL/MSDS;
  • • IEC 61427/ IEC 60896-21/22;


Product Detail

Technical Data

Product Tags

> Characteristics

HTL SERIES HIGH TEMPERATURE LONG LIFE DEEP CYCLE GEL BATTERY

  • Voltage: 6V, 8V, 12V
  • Capacity: 6V200Ah~6V420Ah, 8V170Ah~8V200Ah, 12V14Ah~12V300Ah
  • Designed floating service life: 15~20years @25°C/77°F
  • Brand: CSPOWER / OEM Brand for customers Freely

Certificates: ISO9001/14001/18001 ; CE/IEC 60896-21/22 / IEC 61427 /UL Approved

> Summary For High Temperature Deep Cycle Solar Gel Battery

Newest in 2016, CSPOWER patented High Temperature Solar Deep Cycle long life Gel battery, best choice to work in hot/cold temperature sites and maintain long service life over 15years.

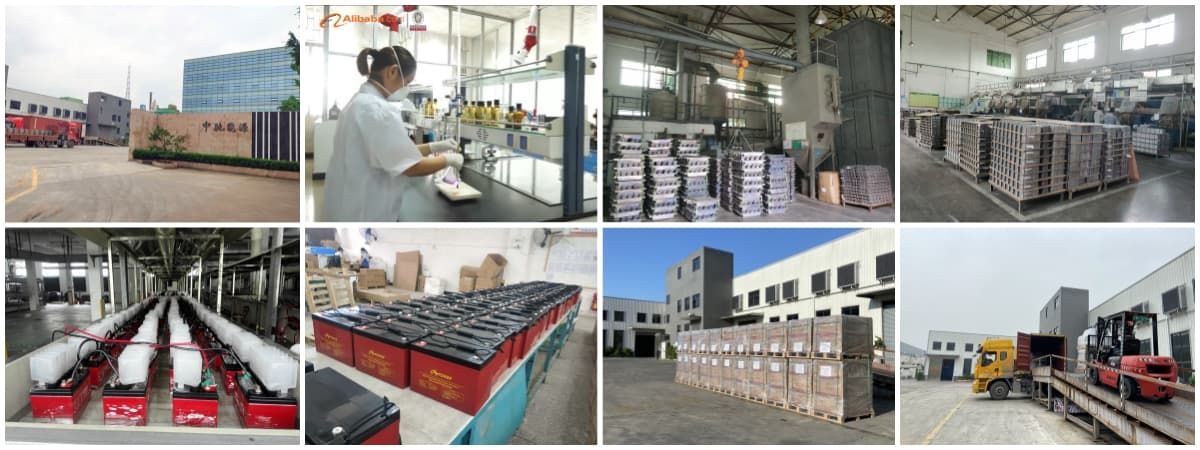

Since 2003, CSPOWER start the research and produce sealed free maintenance AGM and GEL storage batteries. Our batteries are always in the process of innovation according to market and environment: AGM battery→GEL battery→High Temperature Long Life Deep Cycle GEL battery.

Since 2010, we have more and more clients from Africa and Middle east market, also according to global climate become warmer and warmer, especially in Africa and Middle east, more and more application need the long life storage battery working in high temperature, but normal battery recommended working temperature is 25℃, every 10℃increasing in operating temperature will cause the battery life reduce 50%, because high temperature speed up the corrosion of lead plates, reduce the conductivity and durability.

To solve this problem, after 2years research, CSPOWER research team successfully made it. We produce new corrosion-resistant alloy and optimize grid structure to improve battery capacity of corrosion- resistant, extend its cycle life when work in high temperature area. We give it names “High Temperature Long Life Deep Cycle Gel Battery”, mixed the newest innovative technology of complex gel, Super-C, anti-high temperature material, corrosion-resistant alloy and so on.

> Features For High Temperature Deep Cycle Solar Gel Battery

HTL series deep cycle gel battery is specially High-temperature sealed free maintenance deep cycle GEL battery with 15-20ys design life in float service, 30% more than standard Gel battery, and 50% more than Lead Acid AGM battery.

It meets with IEC, CE and ISO standards. With up-dated valve regulated technology and high purity raw GEL materials imported from Germany, the HTL series battery maintains high consistency for better performance and reliable standby service life. It is designed specially for using under high and cold temperature sites.

> Advantages for High Temperature Deep Cycle Solar Gel Battery

  • Three years warranty at 35°C-40°C average
  • Able to operate at -40°C to 60°C

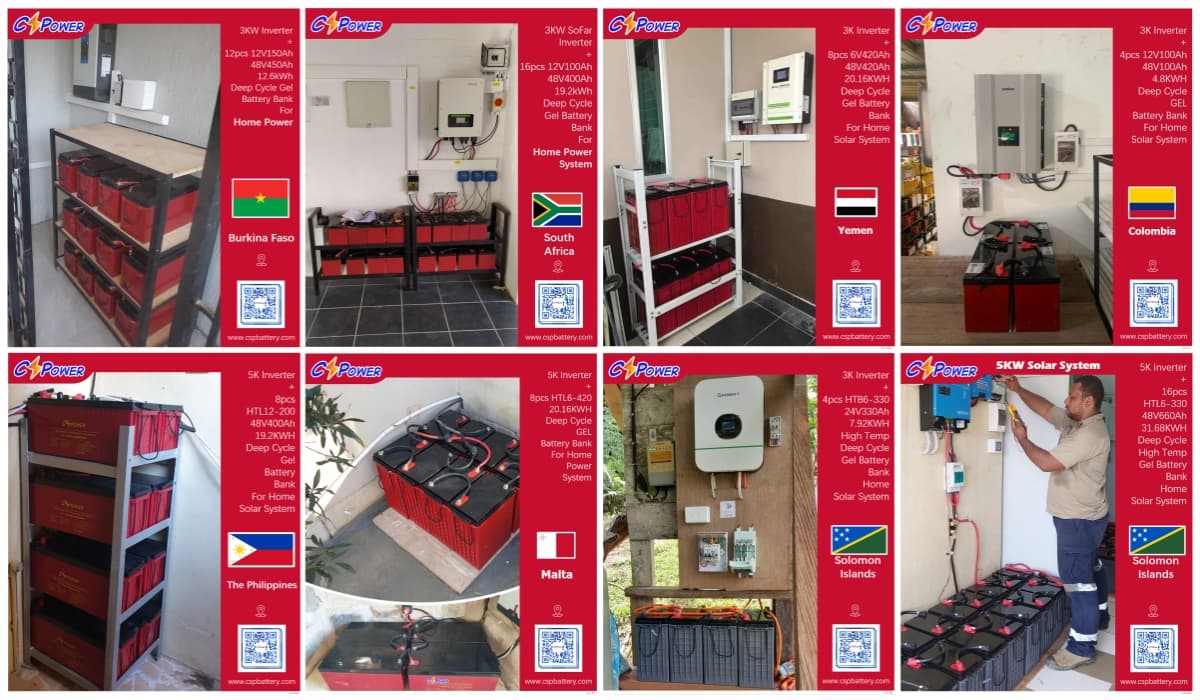

  • Longer life and higher stability under high temp. environment (Perfect to be applied to renewable energy system or hybrid power system at tough condition.)
  • Adopt Super-C additives lead plates: Deep discharge recovery capability
  • Deep Cycle usage: 50% DOD, 1500-1600 Cycles work in high/cold temp. area.

> Construction For Deep Cycle Solar Gel Battery

  • HTL deep cycle gel battery adopts super corrosion-resistant alloy and unique patented grid structure, so can improve the lead plates corrosion-resistant performance in high temperature.
  • It adopts special positive negative lead plates ratio and unique nano gel electrolyte, so can improve battery overpotential of hydrogen evolution effectively and high reduce the water loss in high temperature environment.
  •  Its paste formula is added anti-high temperature expanding agent, so can work continuously in high temperature environment.
  • HTL battery’s shell adopts anti-high temperature ABS material, so the battery inside will not be over heat lead to water loss because of high temperature environment, ensure the battery super long life and the shell will not swell even use in extreme high temperature area.
  • HTL series adopts patented gel electrolyte by nano-meter fumed silica, which advantage is high heat capacity and excellent heat release performance, can avoid the thermal runaway problem of normal battery, and discharge capacity can increase by over 30% in low temperature area. So HTL battery can work very well in severe environment between -40℃-65℃.
  • Its formula is added special super expanding agent which ensure battery discharge capacity is higher than other normal battery when work in low temperature, thus even HTL battery work in -40℃ area, it can work stable and continuously.

> Applications For High Temperature Long Life Solar Battery

Electric Powered Vehicles, Pumps, Golf Cars and Buggies, Tour bus, Sweeper, Floor cleaning machines, Wheel Chairs, Power Tools, Electric Powered Toys, Control System, Medical Equipments, UPS and Inverter systems, Solar and Wind, Servers, Telecom, Emergency and Security systems, Forklift, Marine and RV, Boat and so on.


  • Previous:
  • Next:

  • CSP-MODEL

    Voltage

    Capacity

    Length

    Width

    Height

    Total Height

    Weight (kg)

    Terminal

    Bolt

    (V)

    (Ah)

    (mm)

    (mm)

    (mm)

    (mm)

    (±3%)

    HTL12-14

    12

    14/20HR

    152

    99

    96

    102

    4.1

    F1/F2

    /

    HTL12-20

    12

    20/20HR

    181

    77

    167

    167

    6.3

    T1/L1

    M5×12

    HTL12-24

    12

    24/20HR

    166

    175

    126

    126

    8.6

    T2

    M6×14

    HTL12-26

    12

    26/20HR

    165

    126

    174

    179

    8.7

    T2

    M6×14

    HTL12-35

    12

    35/20HR

    196

    130

    155

    167

    10.8

    T3

    M6×16

    HTL12-40

    12

    40/20HR

    198

    166

    174

    174

    14.5

    T2

    M6×14

    HTL12-55

    12

    55/20HR

    229

    138

    208

    212

    16.3

    T3

    M6×16

    HTL12-70

    12

    70/20HR

    350

    167

    178

    178

    23.6

    T3

    M6×16

    HTL12-75

    12

    75/20HR

    260

    169

    208

    227

    25.3

    T3

    M6×16

    HTL12-85

    12

    85/20HR

    260

    169

    208

    227

    26.4

    T3

    M6×16

    HTL12-90

    12

    90/20HR

    307

    169

    211

    216

    28.5

    T3

    M6×16

    HTL12-100

    12

    100/20HR

    307

    169

    211

    216

    30.5

    T3/T4/AP

    M6×16

    HTL12-110

    12

    110/20HR

    331

    174

    214

    220

    33.6

    T4/AP

    M8×18

    HTL12-120

    12

    120/20HR

    407

    173

    210

    233

    39.5

    T5

    M8×18

    HTL12-135

    12

    135/20HR

    344

    172

    280

    285

    41.1

    T5/AP

    M8×18

    HTL12-150

    12

    150/20HR

    484

    171

    241

    241

    45.8

    T4

    M8×18

    HTL12-180

    12

    180/20HR

    532

    206

    216

    222

    56.3

    T4

    M8×18

    HTL12-200

    12

    200/20HR

    532

    206

    216

    222

    58.7

    T4

    M8×18

    HTL12-230

    12

    230/20HR

    522

    240

    219

    225

    65.3

    T5

    M8×18

    HTL12-250

    12

    250/20HR

    520

    268

    203

    209

    71.3

    T5

    M8×18

    HTL12-300

    12

    300/20HR

    520

    268

    220

    226

    77.3

    T5

    M8×18

    HTL6-200

    6

    200/20HR

    306

    168

    220

    222

    30.3

    T5

    M8×18

    HTL6-210

    6

    210/20HR

    260

    180

    247

    249

    29.8

    T5

    M8×18

    HTL6-220

    6

    220/20HR

    306

    168

    220

    222

    31.8

    T5

    M8×18

    HTL6-225

    6

    225/20HR

    243

    187

    275

    275

    30.8

    T5/AP

    M8×18

    HTL6-250

    6

    250/20HR

    260

    180

    265

    272

    34.8

    T5/AP

    M8×18

    HTL6-310

    6

    310/20HR

    295

    178

    346

    366

    46.3

    T5/AF

    M8×18

    HTL6-330

    6

    330/20HR

    295

    178

    354

    360

    46.9

    T5/AF

    M8×18

    HTL6-380

    6

    380/20HR

    295

    178

    404

    410

    55.6

    T5/AF

    M8×18

    HTL6-420

    6

    420/20HR

    295

    178

    404

    410

    57.1

    T5/AF

    M8×18

    HTL8-170

    8

    170/20HR

    260

    182

    266

    271

    34.3

    T5

    M8×18

    HTL8-200

    8

    200/20HR

    260

    182

    295

    301

    38.3

    T5

    M8×18

    Products will be improved without notice, please contact sales for specification in kind prevail.
