OPzV Deep Cycle Gel Battery

Short Description:

• Tubular OPzV • Deep Cycle

CSPOWER created the innovative OPzV range of batteries. The range offers 20 years design life and super high deep cycling capabilities.

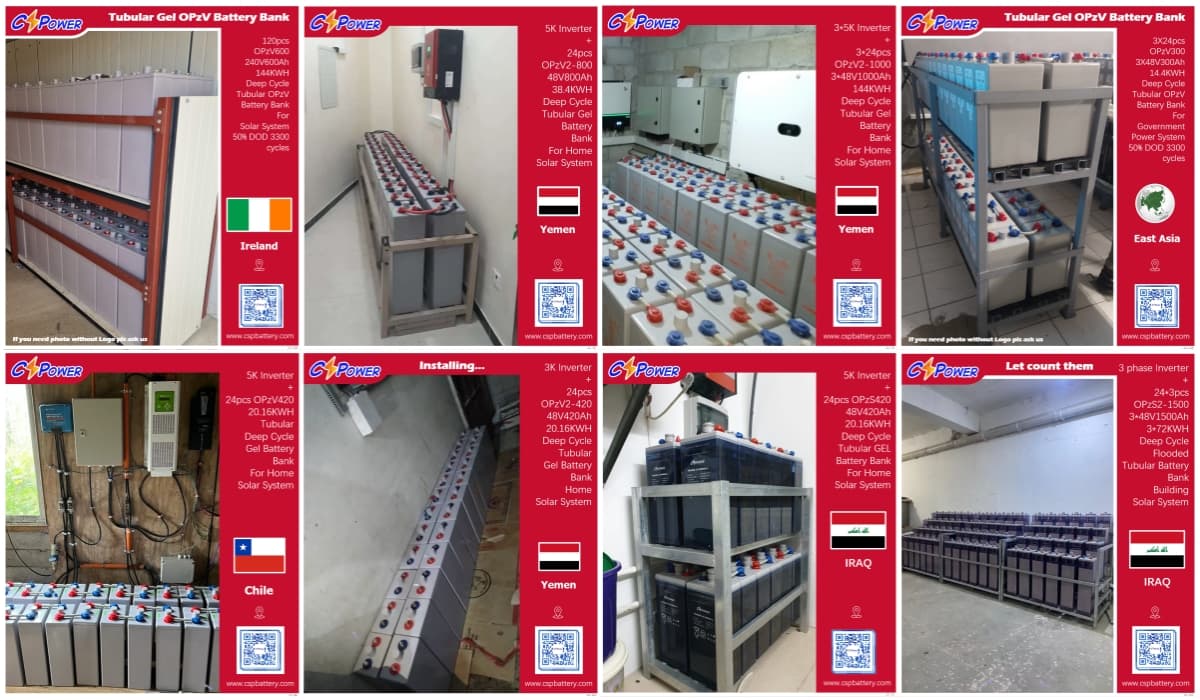

This range is recommended for telecom outdoor applications, renewable energy systems and other harsh environment applications.

  • • Capacity: 2V200Ah~2V3000Ah;12V 100AH-200AH
  • • Designed floating service life: >20 years @ 25 °C/77 °F.
  • • Cyclic usage: 80% DOD, >2000cycles
  • • Brand: CSPOWER / OEM Brand for customers Freely
  • • Certificates: ISO9001/14001/18001 ; CE/IEC 60896-21/22 / IEC 61427


Product Detail

Technical Data

Product Tags

> Characteristics

OPzV Series TUBULAR GEL BATTERY LONGEST LIFE GEL BATTERY(solid-state)

  • Voltage: 2V
  • Capacity: 2V200Ah~2V3000Ah
  • Designed floating service life: >20 years @ 25 °C/77 °F.
  • Cyclic usage: 80% DOD, >2000cycles
  • Brand: CSPOWER / OEM Brand for customers Freely

Certificates: ISO9001/14001/18001 ; CE/IEC 60896-21/22 / IEC 61427 Approved

> Summary For OPzV Gel Solid-State Battery

By combining the newly developed tubular positive plates with fumed gelled electrolyte, CSPOWER created the innovative OPzV range of batteries. The range offers 20 years design life and super high deep cycling capabilities. This range is recommended for telecom outdoor applications, renewable energy systems and other harsh environment applications.

> Features And Advantages For OPzV Solid-State Battery

  1. Over 20 years design life at floating condition @ 25°C
  2. Wide operating temperature range from -40°C to 60°C
  3. Tubular positive plate with prolonged cycle life
  4. Fumed Silica gel electrolyte
  5. Lead Calcium die cast grid with improved corrosion resistance capability
  6. Low self-discharge rate and long shelf life
  7.  Excellent deep discharge recovery capability

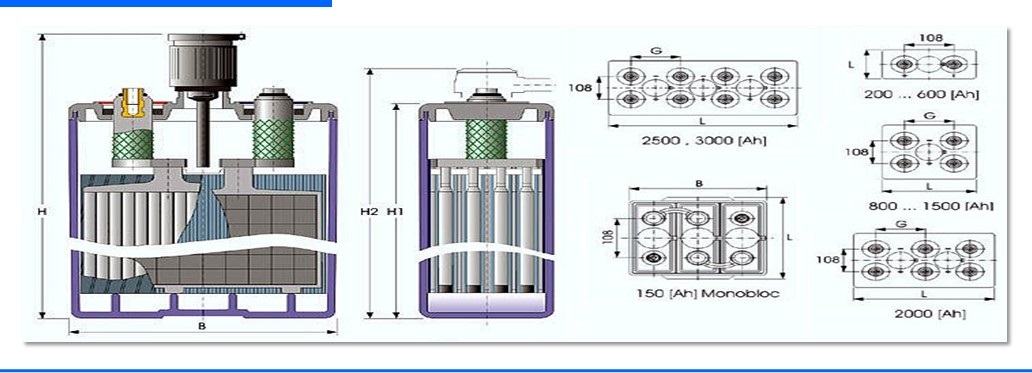

> Construction For OPzV Tubular Gel Battery (Solid-State)

  • Positive Plates: Robust tubular plates consisting of Pb-Ca-Sn alloy, optimized for high corrosion resistance, offer an extreme high cycling expectancy;
  • Negative Plates: Grid plate construction consisting of lead calcium alloy;
  • Separator: Microporous and robust PVC-SiO2 separator, for positive and negative plates and optmized for low internal resistance;
  • Container: ABS (UL94-HB), Flammability resistance of UL94-V1 can be available upon request;
  •  Terminal Poles: Screw connection for easy and safe assembly and maintenance-free connection with excellent conductivity;
  • * Valves: Release gas in case of excess pressure and protects the cell against atmosphere, reasonable open and close valve pressure, high reliable on performance.

> Application

Telecom, Electric Utilities, Control Equipments, Security Systems, Medical Equipments, UPS systems, Railroad Utilities, Photovoltaic Systems, Renewable Energy System and so on.


  • Previous:
  • Next:

  • CSPower
    Model
    Voltage (V) Capacity
    (Ah)
    Dimension (mm) Weight Terminal
    Length Width Height Total Height kgs
    Sealed Free Maintenance Tubular Plate OpzV Gel Solid-State Battery
    OPzV2-200 2 200 103 206 354 390 18 M8/M10
    OPzV2-250 2 250 124 206 354 390 22.5 M8/M10
    OPzV2-300 2 300 145 206 354 390 25 M8/M10
    OPzV2-350 2 350 124 206 470 506 28 M8/M10
    OPzV2-420 2 420 145 206 470 506 32 M8/M10
    OPzV2-500 2 500 166 206 470 506 38 M8/M10
    OPzV2-600 2 600 145 206 645 681 46 M8/M10
    OPzV2-800 2 800 191 210 645 681 65 M8/M10
    OPzV2-1000 2 1000 233 210 645 681 74 M8/M10
    OPzV2-1200 2 1200 275 210 645 681 93 M8/M10
    OPzV2-1500 2 1500 275 210 795 831 112 M8/M10
    OPzV2-2000 2 2000 399 212 772 807 152 M8/M10
    OPzV2-2500 2 2500 487 212 772 807 187 M8/M10
    OPzV2-3000 2 3000 576 212 772 807 225 M8/M10
    OPzV12-100 12 100 407 175 235 235 36 M8/M10
    OPzV12-150 12 150 532 210 217 217 54 M8/M10
    OPzV12-200 12 200 498 259 238 238 72 M8/M10
    Notice : Products will be improved without notice, please contact cspower sales for specification in kind prevail.
