HLC Lead Carbon Battery

Short Description:

• Fast Charge • Lead Carbon

HLC series lead-carbon batteries use functional activated carbon and graphene as carbon materials, which are added to the negative plate of the battery to make lead carbon batteries have the advantages of both lead-acid batteries and super capacitors. It not only improves the ability of rapid charge and discharge, but also greatly prolongs the battery life, more than 2000 cycles at 80%DOD. And even If the batteries are not charged fully during daily use, the battery life span won’t be affected.

  • • Brand: CSPOWER / OEM Brand for customers Freely
  • • ISO9001/14001/18001;
  • • CE/UL/MSDS;
  • • IEC 61427/ IEC 60896-21/22;

CSPower Battery is one of the TO10 manufacturers in China’s lead-acid battery industry integrating design and export. We have more than 20 years of experience in design, manufacturing and export. We have a good brand, large production scale, advanced technology, perfect Sales network and professional service team, and can provide you with OEM&ODM services


Product Detail

Technical Data

Product Tags

> Characteristics

HLC SERIES FAST CHARGE LONG LIFE LEAD CARBON BATTERIES

  • Voltage: 6V, 12V
  • Capacity: upto 6V400Ah, 12V250Ah.
  • Cyclic usage: 80% DOD, >2000 cycles.
  • Brand: CSPOWER / OEM Brand for customers Freely

Certificates: ISO9001/14001/18001 ; CE/IEC 60896-21/22 / IEC 61427 /UL Approved

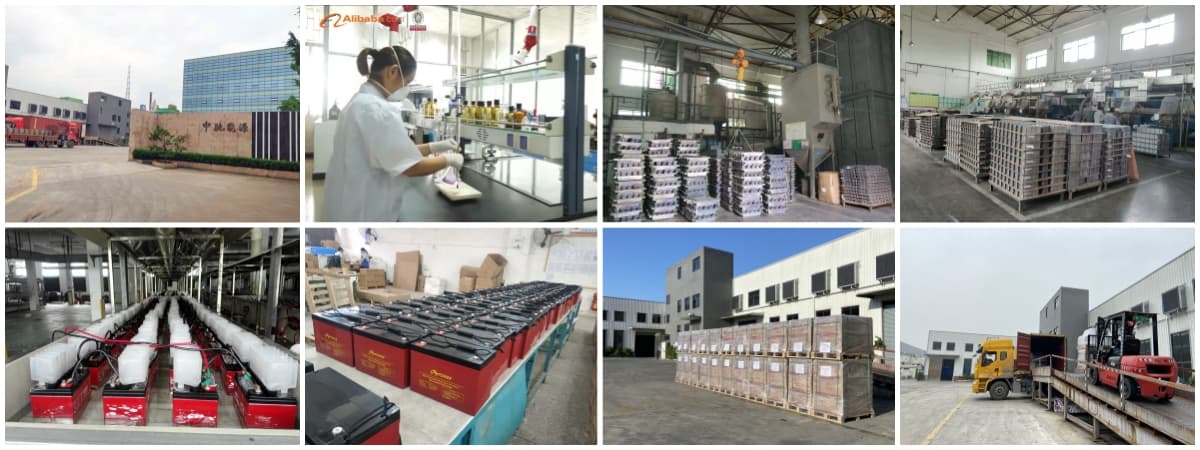

CSPOWER-HLC-Lead carbon battery PRODUCTION

> Features For Long Life Fast Charge Lead Carbon Battery

HLC series lead-carbon batteries use functional activated carbon and graphene as carbon materials, which are added to the negative plate of the battery to make lead carbon batteries have the advantages of both lead-acid batteries and super capacitors.It not only improves the ability of rapid charge and discharge, but also greatly prolongs the battery life, more than 2000 cycles at 80%DOD. It is specially designed for daily heavy cyclic discharge use with feature low boost charge voltage, so is more suitable for the application of PSOC.

> Advantages For Long Life Fast Charge Battery

  1. Less sulfation in case of partial state-of-charge operation.
  2. Lower charge voltage and therefore higher efficiency and less corrosion of the positive plate.
  3. And the overall result is improved cycle life.
  4. Tests have shown that our lead carbon batteries do withstand at least five hundred 100% DoD cycles.
  5. The tests consist of a daily discharge to 10,8V with I = 0,2C₂₀, followed by approximately two hours rest in discharged condition, and then a recharge with I = 0,2C₂₀.
  6. ≥ 1800 cycles @ 90% DoD (discharge to 10,8V with I = 0,2C₂₀, followed by approximately two hours rest in discharged condition, and then a recharge with I = 0,2C₂₀)
  7. ≥ 2500 cycles @ 60% DoD (discharge during three hours with I = 0,2C₂₀, immediately followed by recharge at I = 0,2C₂₀)
  8. ≥ 3800 cycles @ 40% DoD (discharge during two hours with I = 0,2C₂₀, immediately followed by recharge at I = 0,2C₂₀)

> Construction For Deep Cycle Lead Carbon Battery

> Applications For Lead Carbon Battery

  • Home energy storage system
  • Smart power grid and micro-grid system
  • Distributed energy storage system
  • Solar and wind energy storage system
  • Electric power vehicles
  • Solar power generation grid or off-grid energy storage system
  • Generation and battery hybrid energy storage system
CSPower Lead Carbon battery applcations

> Projects feedbacks from customers (for solar system, EV, Forklift...)

CSPower-lead-carbon-batteries

  • Previous:
  • Next:

  • CSPower
    Model
    Nominal
    Voltage (V)
    Capacity
    (Ah)
    Dimension (mm) Weight Terminal
    Length Width Height Total Height kgs
    Fast Charge Lead Carbon Sealed Free Maintenance Battery
    HLC6-200 6 200/20HR 306 168 220 226 31 T5
    HLC6-205 6 205/20HR 260 180 246 252 30 T5
    HLC6-225 6 225/20HR 243 187 275 275 32.5 T5
    HLC6-230 6 230/20HR 260 180 265 272 34.2 T5
    HLC6-280 6 280/20HR 295 178 346 350 45.8 T5
    HLC6-300 6 300/20HR 295 178 346 350 46.5 T5
    HLC6-340 6 340/20HR 295 178 404 408 55 T5
    HLC6-400 6 400/20HR 295 178 404 408 57.2 T5
    HLC12-20 12 20/20HR 166 175 126 126 8.4 T2
    HLC12-24 12 24/20HR 165 126 174 174 8.6 T2
    HLC12-30 12 30/20HR 196 130 155 167 10.2 T3
    HLC12-35 12 35/20HR 198 166 174 174 14 T2
    HLC12-50 12 50/20HR 229 138 208 212 17.7 T3
    HLC12-60 12 60/20HR 350 167 178 178 23 T3
    HLC12-75 12 75/20HR 260 169 211 215 26 T3
    HLC12-90 12 90/20HR 307 169 211 215 30 T3
    HLC12-100 12 100/20HR 328 172 218 219 32 T4
    HLC12-110 12 110/20HR 407 174 208 233 39 T5
    HLC12-120 12 120/20HR 341 173 283 287 40.5 T5
    HLC12-135 12 135/20HR 484 171 241 241 45.5 T4
    HLC12-180 12 180/20HR 532 206 215 219 58.5 T4
    HLC12-200 12 200/20HR 522 240 219 223 64.8 T5
    HLC12-220 12 220/20HR 520 268 203 207 70.8 T5
    HLC12-250 12 250/20HR 520 268 220 224 77.5 T5
    Notice : Products will be improved without notice, please contact cspower sales for specification in kind prevail.
