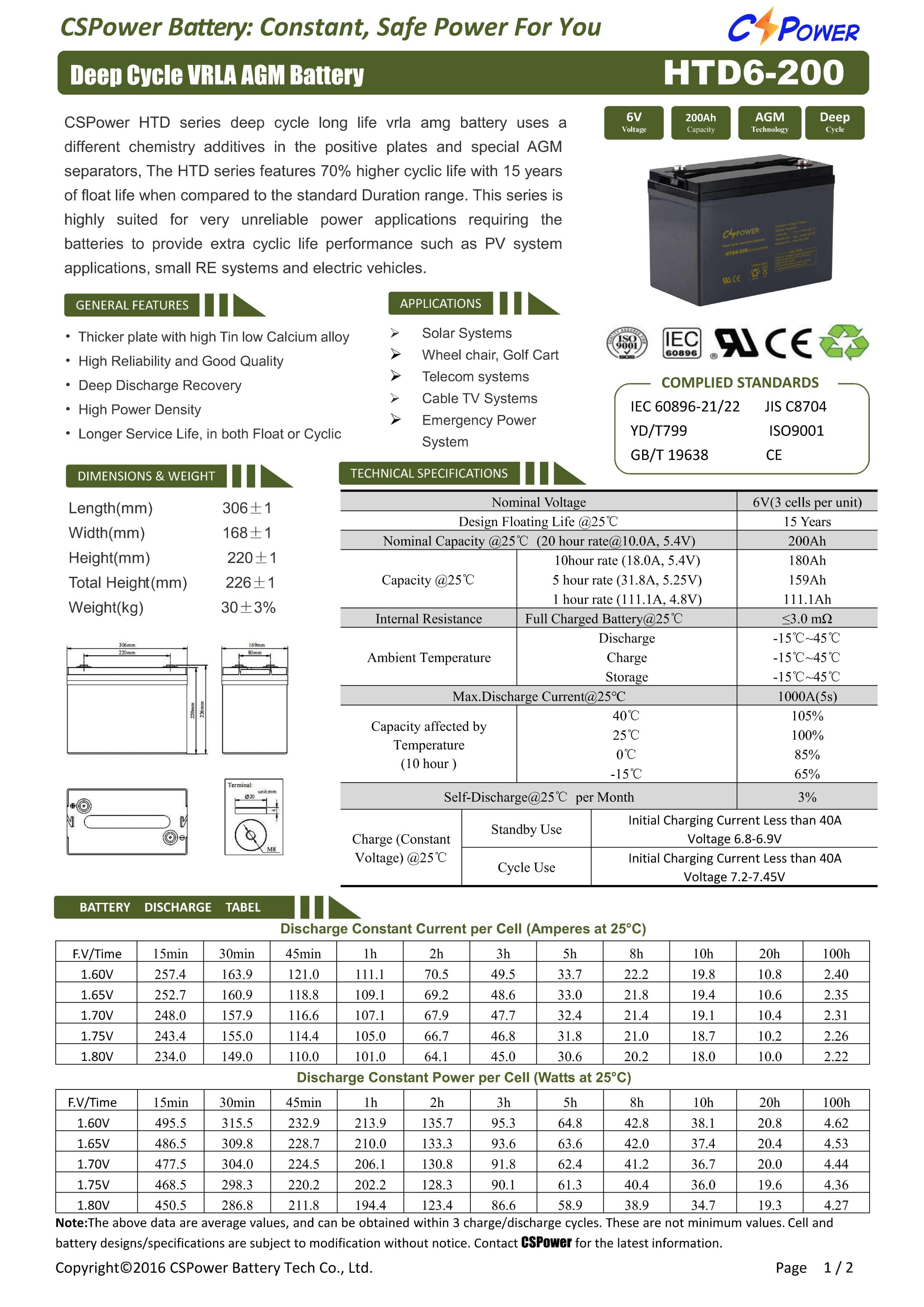

CSPower HTD6-200 Deep Cycle VRLA AGM Battery
| HTD6-200 | |||
| Nominal Voltage | 6V (3 cells per unit) | ||
| Design Floating Life @ 25℃ | 15 Years | ||
| Nominal Capacity @ 25℃ | 20 hour rate@ 21.0A, 5.4V | 200Ah | |
| Capacity @ 25℃ | 10 hour rate (18.0A, 5.4V) | 180Ah | |
| 5 hour rate (31.8A, 5.25V) | 159Ah | ||
| 1 hour rate (111.3A, 4.8V) | 111.1Ah | ||
| Internal Resistance | Full Charged Battery@ 25℃ | ≤3mΩ | |
| Ambient Temperature | Discharge | -15℃~45℃ | |
| Charge | -15℃~45℃ | ||
| Storage | -15℃~45℃ | ||
| Max.Discharge Current | @ 25℃ 1000A(5s) | ||
| Capacity affected by Temperature (10 hour ) | 40℃ | 105% | |
| 25℃ | 100% | ||
| 0℃ | 85% | ||
| -15℃ | 65% | ||
| Self-Discharge@25℃per Month | 3% | ||
| Charge (Constant Voltage) @ 25℃ | Standby Use | Initial Charging Current Less than 40A Voltage 6.8 - 6.9V | |
| Cycle Use | Initial Charging Current Less than 40A Voltage 7.2 - 7.45V | ||
| Dimension (mm*mm*mm) | Length 306±1 * Width 168±1 * Height 220±1 (Total Height 226±1) | ||
| Weight (kg) | 30±3% | ||
| CSPower MODEL |
Voltage (V) |
Capacity (Ah) |
Dimension | Weight (kg) (±3%) |
Terminal | Bolt | |||
| Length (mm) |
Width (mm) |
Height (mm) |
Total Height (mm) |
||||||
| HTD6-250 | 6 | 250/20HR | 260 | 178 | 265 | 272 | 34.8 | T5 | M8×18 |
| HTD6-310 | 6 | 310/20HR | 295 | 178 | 354 | 360 | 46.3 | T5/AF | M8×18 |
| HTD6-330 | 6 | 330/20HR | 295 | 178 | 354 | 360 | 46.6 | T5/AF | M8×18 |
| HTD6-380 | 6 | 380/20HR | 295 | 178 | 404 | 410 | 55.3 | T5/AF | M8×18 |
| HTD6-420 | 6 | 420/20HR | 295 | 178 | 404 | 410 | 56.8 | T5/AF | M8×18 |
| HTD8-170 | 8 | 170/20HR | 260 | 182 | 266 | 271 | 34.3 | M8 | |
| HTD8-200 | 8 | 200/20HR | 260 | 182 | 295 | 301 | 38.3 | M8 | |
| HTD12-14 | 12 | 14/20HR | 152 | 99 | 96 | 102 | 4 | F1/F2 | / |
| HTD12-20 | 12 | 20/20HR | 181 | 77 | 167 | 167 | 6 | T1/D1 | M5×12 |
| HTD12-24 | 12 | 24/20HR | 166 | 175 | 126 | 126 | 8.3 | T2 | M6×14 |
| HTD12-26 | 12 | 26/20HR | 165 | 126 | 174 | 179 | 8.4 | T2 | M6×14 |
| HTD12-35 | 12 | 35/20HR | 196 | 130 | 155 | 167 | 10.5 | T3 | M6×16 |
| HTD12-40 | 12 | 40/20HR | 198 | 166 | 174 | 174 | 14.2 | T2 | M6×14 |
| HTD12-55 | 12 | 55/20HR | 229 | 138 | 208 | 212 | 16 | T3 | M6×16 |
| HTD12-70 | 12 | 70/20HR | 350 | 167 | 178 | 178 | 23.3 | T3 | M6×16 |
| HTD12-75 | 12 | 75/20HR | 260 | 169 | 208 | 227 | 25 | T3 | M6×16 |
| HTD12-85 | 12 | 85/20HR | 260 | 169 | 208 | 227 | 26.1 | T3 | M6×16 |
| HTD12-90 | 12 | 90/20HR | 307 | 169 | 211 | 216 | 28.2 | T3 | M6×16 |
| HTD12-100 | 12 | 100/20HR | 307 | 169 | 211 | 216 | 30.2 | T3/T4/AP | M6×16 |
| HTD12-110 | 12 | 110/20HR | 331 | 174 | 214 | 220 | 33.3 | T4/AP | M8×18 |
| HTD12-120 | 12 | 120/20HR | 407 | 173 | 210 | 233 | 39.2 | T5 | M8×18 |
| HTD12-135 | 12 | 135/20HR | 344 | 172 | 280 | 285 | 41 | T5/AP | M8×18 |
| HTD12-150 | 12 | 150/20HR | 484 | 171 | 241 | 241 | 45.5 | T4 | M8×18 |
| HTD12-180 | 12 | 180/20HR | 532 | 206 | 216 | 222 | 56 | T4 | M8×18 |
| HTD12-200 | 12 | 200/20HR | 532 | 206 | 216 | 222 | 58.4 | T4 | M8×18 |
| HTD12-230 | 12 | 230/20HR | 522 | 240 | 219 | 225 | 65 | T5 | M8×18 |
| HTD12-250 | 12 | 250/20HR | 520 | 268 | 203 | 209 | 71 | T5 | M8×18 |
| HTD12-300 | 12 | 300/20HR | 520 | 268 | 220 | 226 | 77 | T5 | M8×18 |
| Products will be improved without notice, please contact sales for specification in kind prevail. | |||||||||
