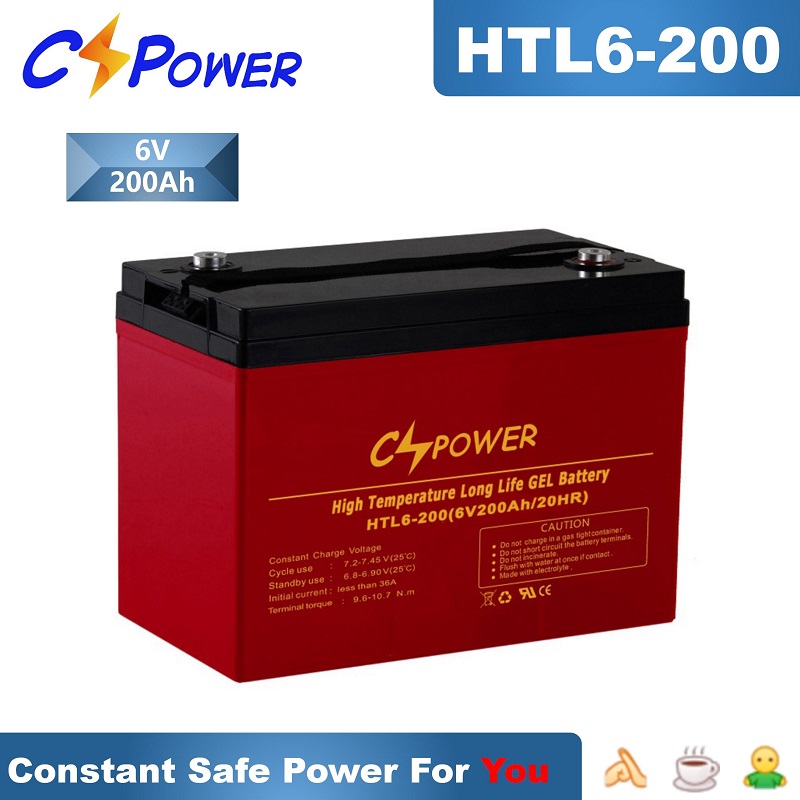

HTL Pro 6V200Ah High Temperature Deep Cycle GEL Battery

Short Description:

Designed floating service life: 15~20years @25°C/77°F

Able to operate at -40°C to 60°C

50% DOD 1750 cycles

Three years warranty at 35°C-40°C average

Normal,30 days for production with injection molding Lead-plate by ourself

As a factory we Can Support Urgent project with 10-15days.

OEM brand is free charge.

Application: Solar power generation grid, Off Grid energy storage systems, Wind Power Systems, sweeper, forklift

Certificates:CE/UL/ISO/IEC

Trade Terms:EXW/FOB/CIF

Color:Red Body Black Cover

Send email to us Download as PDF

Product Detail

Technical Data

Product Tags

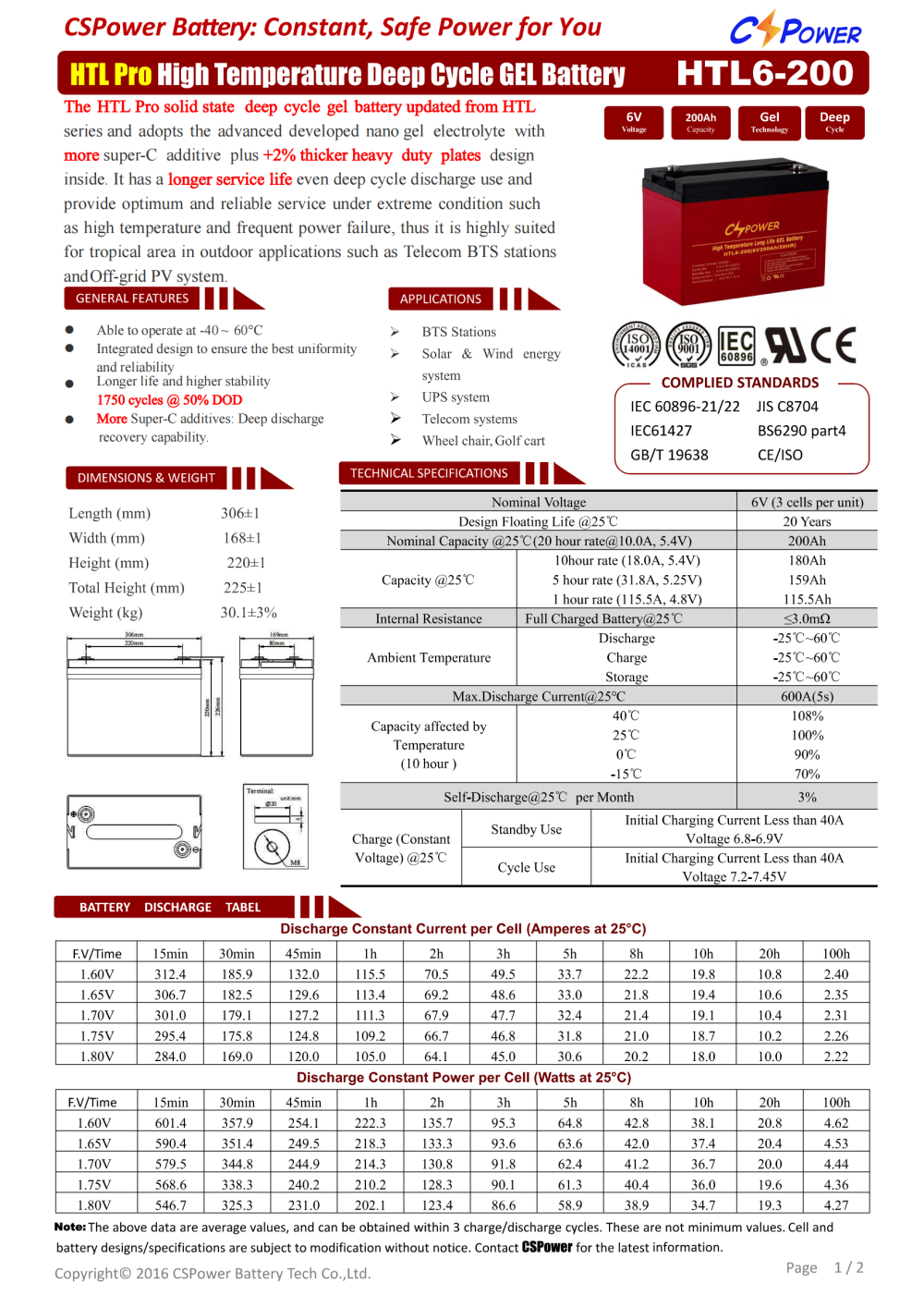

HTL6-200
Nominal Voltage			6V (3 cells per unit)
Design Floating Life @ 25℃			20 Years
Nominal Capacity @ 25℃		20 hour rate@ 21.0A, 5.4V	200Ah
Capacity @ 25℃		10 hour rate (37.8A, 5.4V)	180Ah
		5 hour rate (66.8A, 5.25V)	159Ah
		1 hour rate (233.3A, 4.8V)	115.5Ah
Internal Resistance		Full Charged Battery@ 25℃	≤3mΩ
Ambient Temperature		Discharge	-25℃~60℃
		Charge	-25℃~60℃
		Storage	-25℃~60℃
Max.Discharge Current			@ 25℃ 600A(5s)

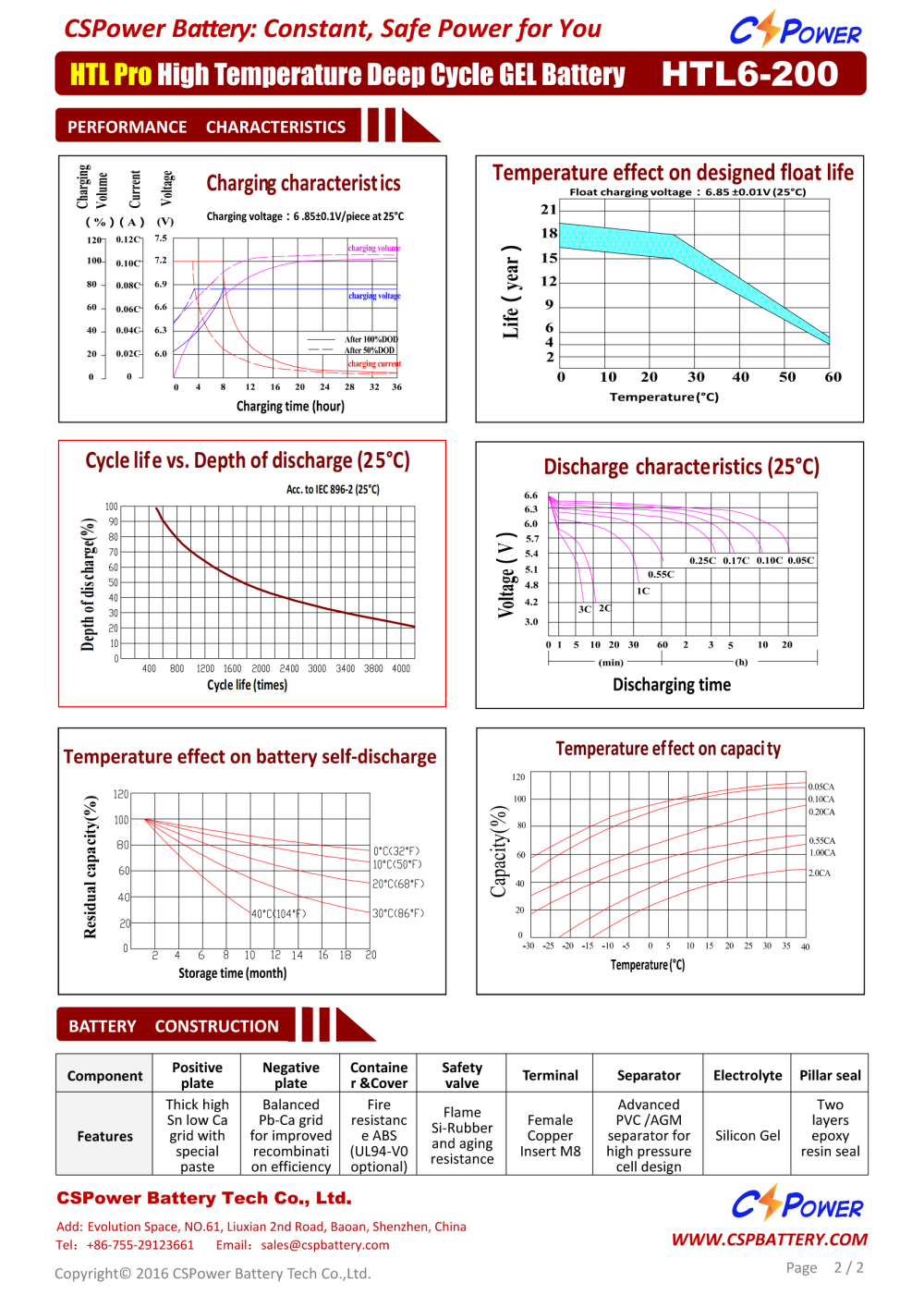

Capacity affected by Temperature (10 hour )		40℃	108%
		25℃	100%
		0℃	90%
		-15℃	70%
Self-Discharge@25℃per Month			3%
Charge (Constant Voltage) @ 25℃	Standby Use	Initial Charging Current Less than 40A Voltage 6.8 - 6.9V
	Cycle Use	Initial Charging Current Less than 40A Voltage 7.2 - 7.45V
Dimension (mmmmmm)	Length 306±1 * Width 168±1 * Height 220±1 (Total Height 225±1)
Weight (kg)	30.1±3%

Previous: Big discounting China Manufacturer 12n Motorcycle Battery 3ah 5ah 7ah 9ah Battery Lead Acid AGM Rechargeable Motorcycle Battery

Next: HTL Pro 6V210Ah High Temperature Deep Cycle GEL Battery

CSPower MODEL	Voltage (V)	Capacity (Ah)	Dimension				Weight (kg) (±3%)	Terminal	Bolt
CSPower MODEL	Voltage (V)	Capacity (Ah)	Length (mm)	Width (mm)	Height (mm)	Total Height (mm)	Weight (kg) (±3%)	Terminal	Bolt
HTL High Temperature Deep Cycle Gel Battery 12V
HTL12-14	12	14/20HR	152	99	96	102	4.1	F1/F2	/
HTL12-20	12	20/20HR	181	77	167	167	6.3	T1/L1	M5×12
HTL12-24	12	24/20HR	166	175	126	126	8.6	T2	M6×14
HTL12-26	12	26/20HR	165	126	174	179	8.7	T2	M6×14
HTL12-35	12	35/20HR	196	130	155	167	10.8	T3	M6×16
HTL12-40	12	40/20HR	198	166	174	174	14.5	T2	M6×14
HTL12-55	12	55/20HR	229	138	208	212	16.3	T3	M6×16
HTL12-70	12	70/20HR	350	167	178	178	23.6	T3	M6×16
HTL12-75	12	75/20HR	260	169	208	227	25.3	T3	M6×16
HTL12-85	12	85/20HR	260	169	208	227	26.4	T3	M6×16
HTL12-90	12	90/20HR	307	169	211	216	28.5	T3	M6×16
HTL12-100	12	100/20HR	307	169	211	216	30.5	T3/T4/AP	M6×16
HTL12-110	12	110/20HR	331	174	214	220	33.6	T4/AP	M8×18
HTL12-120	12	120/20HR	407	173	210	233	39.5	T5	M8×18
HTL12-135	12	135/20HR	344	172	280	285	41.1	T5/AP	M8×18
HTL12-150	12	150/20HR	484	171	241	241	45.8	T4	M8×18
HTL12-180	12	180/20HR	532	206	216	222	56.3	T4	M8×18
HTL12-200	12	200/20HR	532	206	216	222	58.7	T4	M8×18
HTL12-230	12	230/20HR	522	240	219	225	65.3	T5	M8×18
HTL12-250	12	250/20HR	520	268	203	209	71.3	T5	M8×18
HTL12-300	12	300/20HR	520	268	220	226	77.3	T5	M8×18

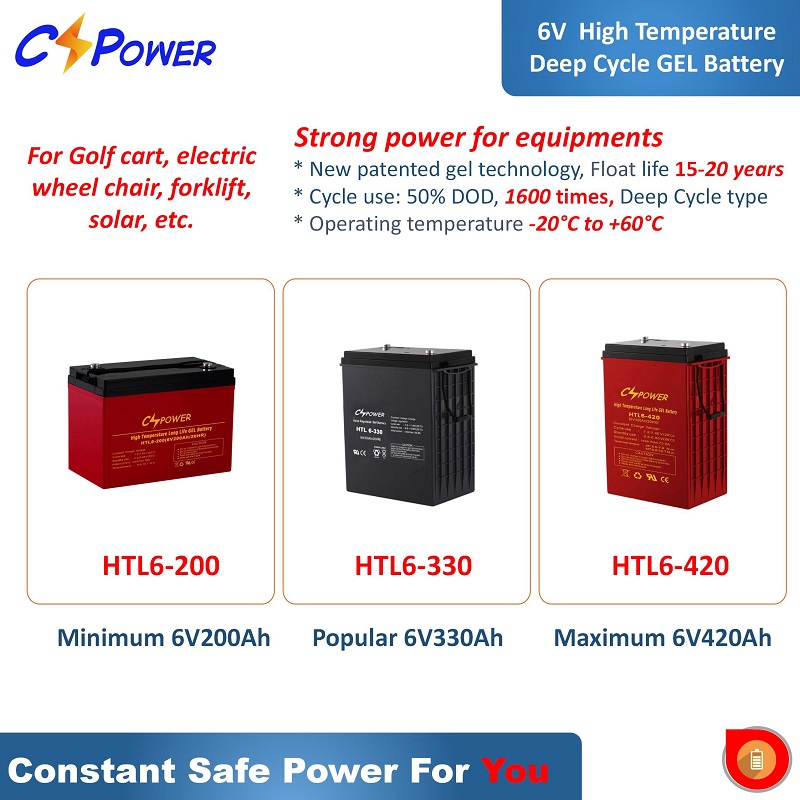

HTL High Temperature Deep Cycle Gel Battery 6V
HTL6-200	6	200/20HR	306	168	220	222	30.3	T5	M8×18
HTL6-210	6	210/20HR	260	180	247	249	29.8	T5	M8×18
HTL6-220	6	220/20HR	306	168	220	222	31.8	T5	M8×18
HTL6-225	6	225/20HR	243	187	275	275	30.8	T5/AP	M8×18
HTL6-250	6	250/20HR	260	180	265	272	34.8	T5/AP	M8×18
HTL6-310	6	310/20HR	295	178	346	366	46.3	T5/AF	M8×18
HTL6-330	6	330/20HR	295	178	354	360	46.9	T5/AF	M8×18
HTL6-380	6	380/20HR	295	178	404	410	55.6	T5/AF	M8×18
HTL6-420	6	420/20HR	295	178	404	410	57.1	T5/AF	M8×18
Products will be improved without notice, please contact sales for specification in kind prevail.
