CSPower HLC12-200 Lead Carbon Battery

HLC SERIES FAST CHARGE LONG LIFE LEAD CARBON BATTERIES

● Capacity: upto 6V400Ah, 12V250Ah.

● Cyclic usage: 80% DOD, >2000 cycles.

● Brand: CSPOWER / OEM Brand for customers Freely

● Color: red case black cover, grey case black cover

● OEM brand freely

● Normal 35-40 days for production with injection molding Lead-plate by ourself

● Application: Solar power generation grid, Off Grid energy storage systems, Wind Power Systems, sweeper, forklift

● Certificates: ISO9001/14001/18001 ; CE/IEC 60896-21/22 / IEC 61427 Approved

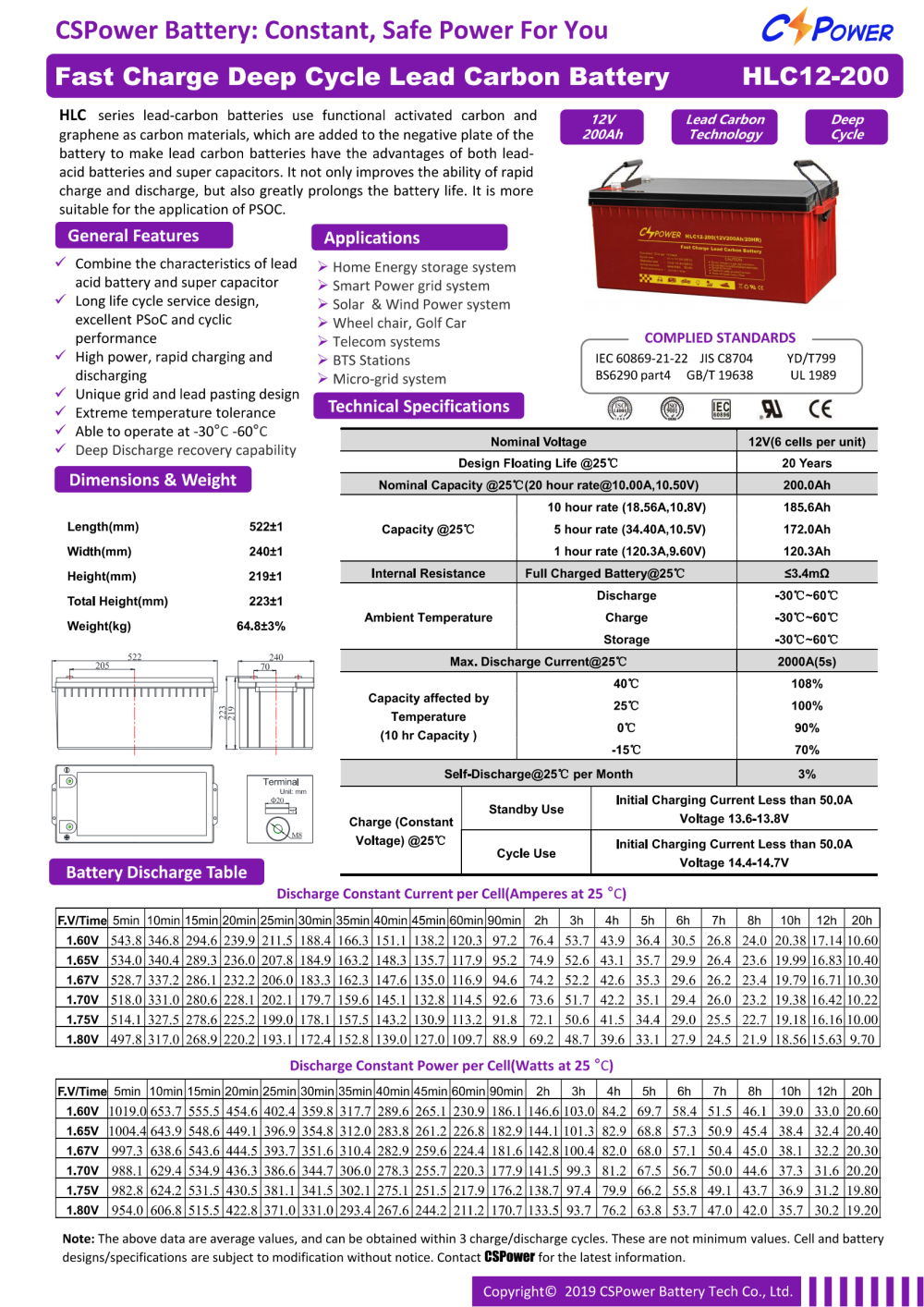

HLC12-200
Nominal Voltage			12V (6 cells per unit)
Design Floating Life @ 25℃			20 Years
Nominal Capacity @ 25℃		20 hour rate@ 10.00A10.50V	200Ah
Capacity @ 25℃		10 hour rate (18.56A, 10.8V)	185.6Ah
		5 hour rate (34.4A, 10.5V)	172.0Ah
		1 hour rate (120.3A, 9.60V)	120.3Ah
Internal Resistance		Full Charged Battery@ 25℃	≤3.4mΩ
Ambient Temperature		Discharge	-30℃~60℃
		Charge	-30℃~60℃
		Storage	-30℃~60℃
Max.Discharge Current@ 25℃			2000A(5s)
Capacity affected by Temperature (10 hour )		40℃	108%
		25℃	100%
		0℃	90%
		-15℃	70%
Self-Discharge@25℃per Month			3%
Charge (Constant Voltage) @ 25℃	Standby Use	Initial Charging Current Less than 50.0A Voltage 13.6 - 13.8V
	Cycle Use	Initial Charging Current Less than 50.0A Voltage 14.4 - 14.7V
Dimension (mmmmmm)	Length 522±1 * Width 240±1 * Height 219±1 (Total Height 223±1)
Weight (kg)	64.8±3%

Previous: CSPower HLC12-180 Lead Carbon Battery

Next: CSPower HLC12-220 Lead Carbon Battery

CSPower MODEL	Voltage	Capacity	Dimension (mm)				Weight (kg)	Terminal
CSPower MODEL	(V)	(Ah)	Length (mm)	Width (mm)	Height (mm)	Total Height (mm)	(±3%)	Terminal
HLC6-200	6	200/20HR	306	168	220	226	31	T5
HLC6-205	6	205/20HR	260	180	246	252	30	T5
HLC6-225	6	225/20HR	243	187	275	275	32.5	T5
HLC6-230	6	230/20HR	260	180	265	272	34.2	T5
HLC6-280	6	280/20HR	295	178	346	350	45.8	T5
HLC6-300	6	300/20HR	295	178	346	350	46.5	T5
HLC6-340	6	340/20HR	295	178	404	408	55	T5
HLC6-400	6	400/20HR	295	178	404	408	57.2	T5
HLC12-20	12	20/20HR	166	175	126	126	8.4	T2
HLC12-24	12	24/20HR	165	126	174	174	8.6	T2
HLC12-30	12	30/20HR	196	130	155	167	10.2	T3
HLC12-35	12	35/20HR	198	166	174	174	14	T2
HLC12-50	12	50/20HR	229	138	208	212	17.7	T3
HLC12-60	12	60/20HR	350	167	178	178	23	T3
HLC12-75	12	75/20HR	260	169	211	215	26	T3
HLC12-90	12	90/20HR	307	169	211	215	30	T3
HLC12-100	12	100/20HR	331	176	215	219	33	T4
HLC12-110	12	110/20HR	407	174	208	233	39	T5
HLC12-120	12	120/20HR	341	173	283	287	40.5	T5
HLC12-135	12	135/20HR	484	171	241	241	45.5	T4
HLC12-180	12	180/20HR	532	206	215	219	58.5	T4
HLC12-200	12	200/20HR	522	240	219	223	64.8	T5
HLC12-220	12	220/20HR	520	268	203	207	70.8	T5
HLC12-250	12	250/20HR	520	268	220	224	77.5	T5
Products will be improved without notice, please contact sales for specification in kind prevail.
